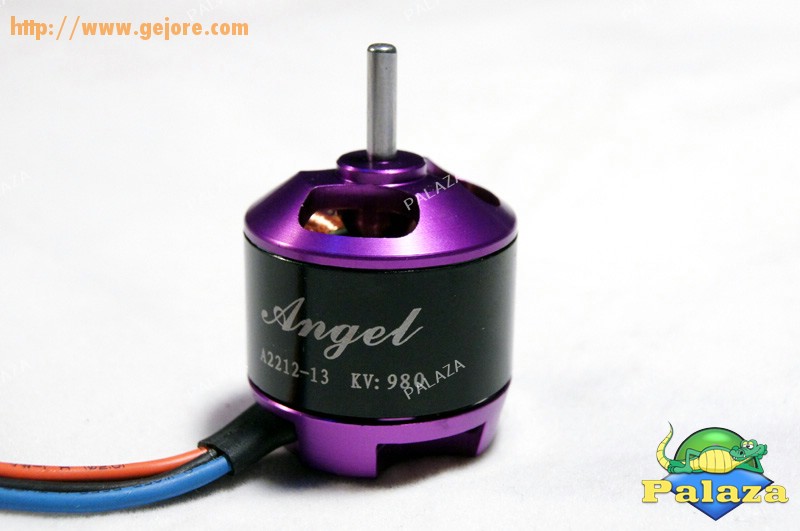

A2212-980KV

A2212
Prop	Volts	Amps	Thrust(g)	Watts (W)	Efficiency (g/W)	全油門負載溫度
(inch)	(V)	(A)			g/W
APC 7060	11.1	1.3	100	14	6.93	30
		3.2	200	36	5.63
		5.7	300	63	4.74
		8.7	400	97	4.14
		14.3	557	159	3.51
	14.8	1	100	15	6.76	40
		2.5	200	37	5.41
		4.3	300	64	4.71
		6.7	400	99	4.03
		9.2	500	136	3.67
		12	600	178	3.38
		15.4	700	228	3.07
		19.1	800	283	2.83
		22.4	894	332	2.70
APC 8038	11.1	0.8	100	9	11.26	36
		2	200	22	9.01
		3.5	300	39	7.72
		5.2	400	58	6.93
		7.1	500	79	6.34
		9.5	600	105	5.69
		12.2	700	135	5.17
		15.2	800	169	4.74
		17.6	900	195	4.61
APC 8060	11.1	1	100	11	9.01	35
		2.5	200	28	7.21
		4.4	300	49	6.14
		6.6	400	73	5.46
		8.6	500	95	5.24
		11.5	600	128	4.70
		15.1	700	168	4.18
		18.7	815	208	3.93
APC 9045	11.1	0.7	100	8	12.87	38
		1.8	200	20	10.01
		3.1	300	34	8.72
		4.8	400	53	7.51
		6.7	500	74	6.72
		8.8	600	98	6.14
		11.2	700	124	5.63
		13.8	800	153	5.22
		16.9	900	188	4.80
		19.5	1000	216	4.62
APC 9047	11.1	0.6	100	7	15.02	38
		1.6	200	18	11.26
		3	300	33	9.01
		4.5	400	50	8.01
		6.4	500	71	7.04
		8.5	600	94	6.36
		10.8	700	120	5.84
		13.4	800	149	5.38
		16.5	900	183	4.91
		19.7	1027	219	4.70
