GR7091-11

新一代穿越機飛控SP Racing F3升級版 EVO帶Micro SD卡

發貨清單：
主控+4G MicroSD卡+排針（需自行焊接） 。

官方網站
http://www.seriouslypro.com/spracingf3evo

RCGROUPS討論帖
http://www.rcgroups.com/forums/showthread.php?t=2641205&。highlight=sp+racing+f3+evo

Jaw-Dropping Flight Performance
The SPRacingF3EVO uses advanced processor， sensor and software technologies to make your aircraft fly like it's on rails.
The SPRacingF3EVO flight-controller and the Cleanflight software enables the precision flying you need for fast FPV racing.

Next-Generation CPU
The SPRacingF3EVO has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time.
Loop times up to ~2x as fast as previous-generation STM32F1 based boards.

SPI sensor connection
The gyroscope and accelerometer sensors are connected to the fast SPI bus. This enables the software to get more data even quicker to help stabilize your aircraft even better

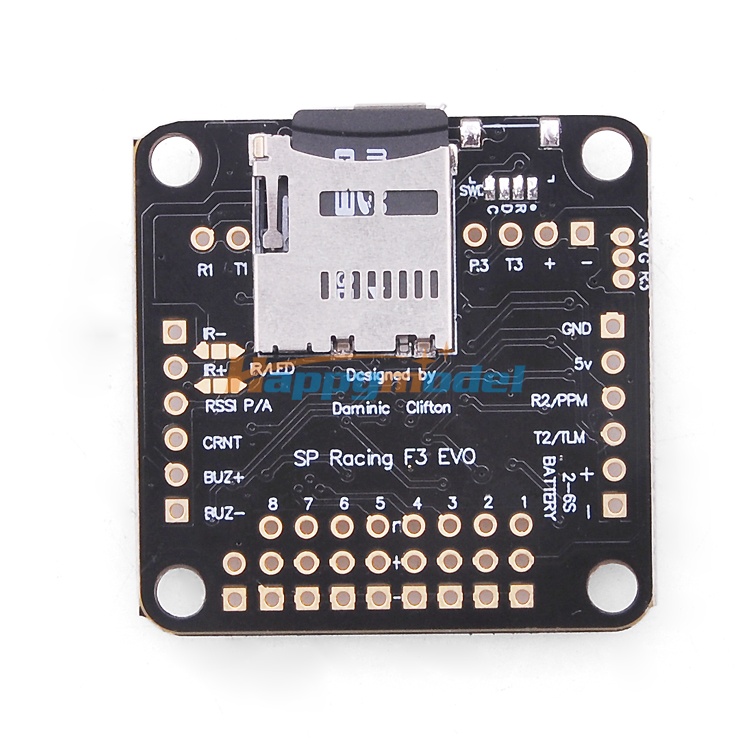

MicroSD
The SPRacingF3EVO is the first and only standard sized board for Cleanflight that features a MicroSD card socket for logging. Supports MicroSD/SDHC up to 32GB - just leave one in and log every flight!

USB
USB socket to configuration of flight controller and for pass-though configuration of BlHeli ESCs.
USB socket is not shared with any of the 3 serial ports. No more unplugging your OSD when configuring

Configurable
The SPRacingF3EVO runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).

Small and lightweight
The SPRacingF3EVO has a standard 36x36mm form-factor with 30.5mm mounting holes on a thick PCB for durability.

Stackable
The SPRacingF3EVO is a stackable design. Connect an OSD or PDB directly under the board for a super-tidy and wire-free installation.
Stackable designs are proven to be more durable in a crash.

Broad RC receiver support
Supports SBus， SumH， SumD， Spektrum1024/2048， XBus， PPM. No external inverters required (built-in)， receiver powered via flight battery or USB for easy configuration.

Dedicated ports for PPM/SBus/SumH/etc for easy connections. Socket for plug and play Spektrum Satellite receiver.

Programmable LEDs
Output for multi-colored LED strips - great for FPV racing， line-of-sight flying orientation and night flying.

Developer Friendly
Developer friendly debugging port (SWD) and boot mode selection， unbrickable bootloader.

OneShot ESC
Full support for OneShot ESCs for easy PID tuning and a sharper response.

Battery Monitoring
Built in battery voltage monitoring， input for additional current monitoring.

Sonar
Sonar support for precision low-altitude hold.

I2C Port
I2C port always powered， perfect for external sensors or always-on OLED Screen.

Buzzer
Buzzer port for audible warnings and notifications.

Cleanflight logos and stickers
The SPRacingF3EVO features a copper-etched Cleanflight logo so you can show your support!
Each purchase direct from the Seriously Pro shop also comes with stickers! (when available)

GPS Ready *
With a full-set of sensors (Accelerometer， Gryoscope， Compass and Barometer) each SPRacingF3EVO is capable of GPS Navigation
 。* Available in Cleanflight soon， New GPS features under active development.

Specifications

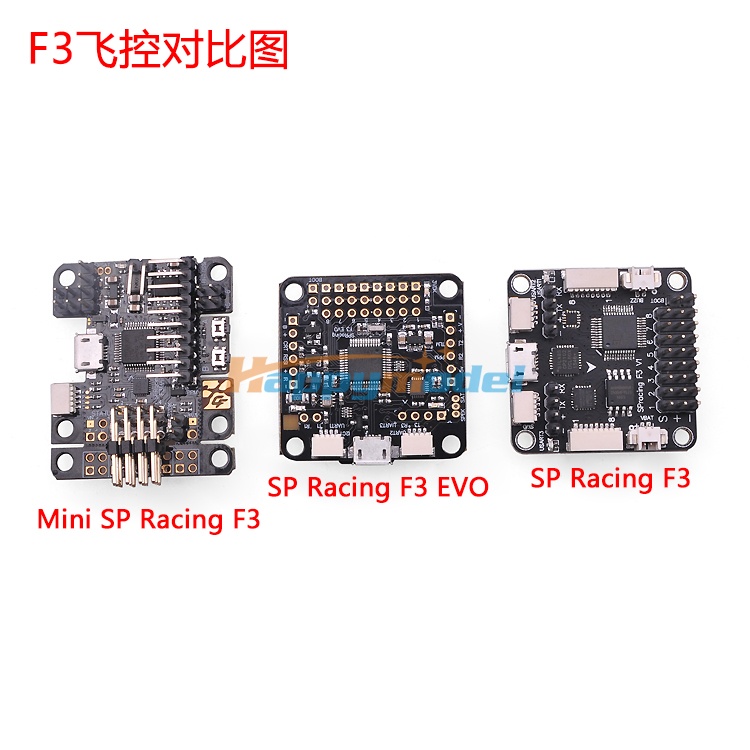

The hardware was designed by the lead developer of Cleanflight to be more capable than the previous-generation STM32F1-based boards and to set the benchmark for a fully-featured STM32F3-based mini board.
36x36mm board with 30.5mm mounting holes

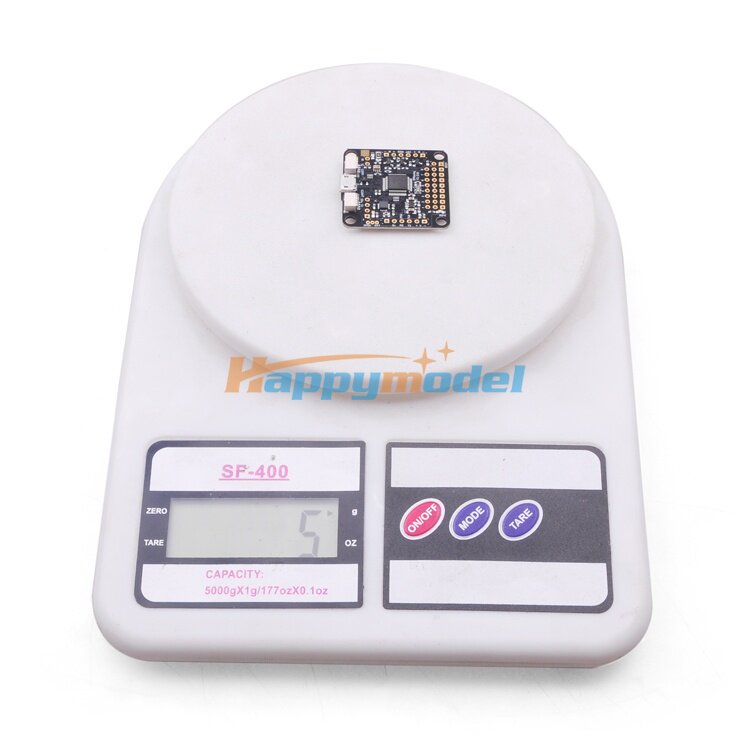

Weight ~5 grams
STM32F303 CPU， 72Mhz inc FPU
MicroSD card slot (SD/SDHC， upto 32GB)
MPU9250 accelerometer/gyro/compass (connected via SPI)
BMP280 barometer
MicroUSB socket for configuration and ESC programming
3 LEDs for 5V， 3V and STATUS (Green， Blue， Red)
Supplied with straight and right-angled pin headers.
Copper-etched Cleanflight logo

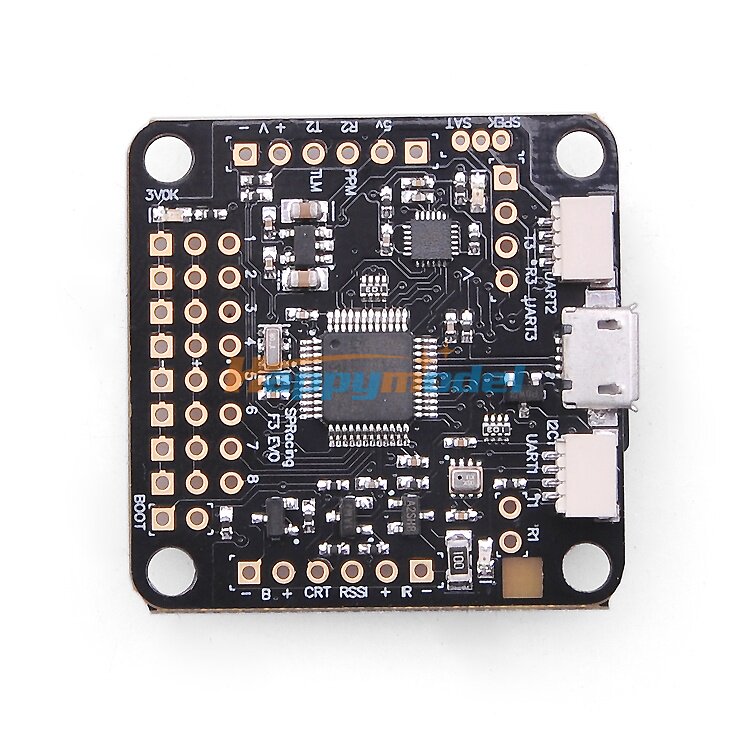

8x 3pin though-holes for pin headers for ESC/Servo connections
1x 2pin though-holes for pin headers for UART1 RX/TX
1x 6pin though-holes for pin headers for UART2/PPM/Telemetry/LiPo (for standard SerialRX/SBus/PPM lead)
1x 4pin though-holes for pin headers for UART3
1x 6pin though-holes for pin headers for IR LED/LED Strip， RSSI， Current Monitoring， and Buzzer connections
1x 3pin though-holes for JST-ZH connector for Spektrum Satellite receivers (connector supplied).
1x 4pin top mounted， JST-SH socket for I2C
1x 4pin top mounted， JST-SH socket for UART2/PPM
1x 4pin bottom mounted JST-SH socket for SWD debugging
1x 2pin though-holes for BOOT jumper.

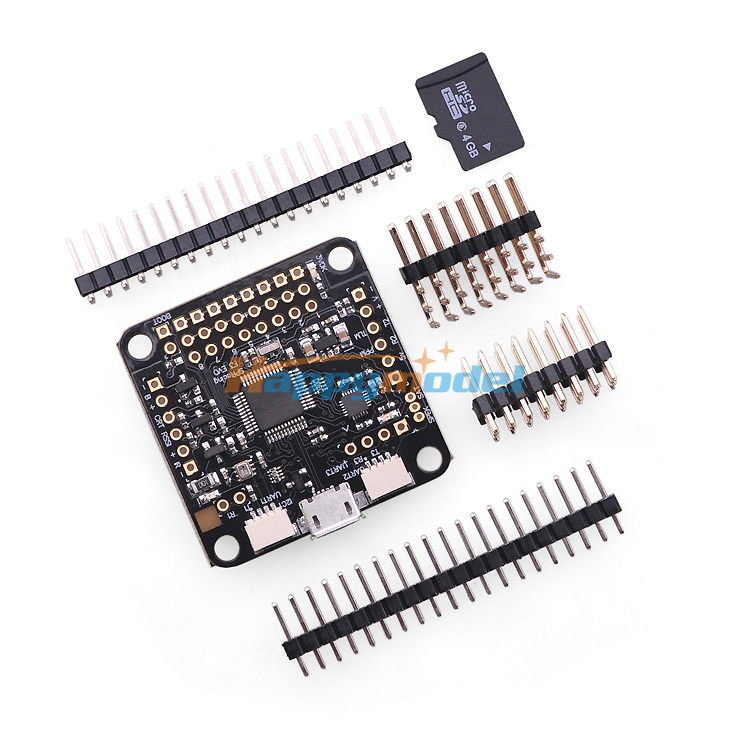

Includes
SP Racing F3 EVO Flight Controller
MicroSD card socket and pin headers.
Micro SD card 4G

CleanFlight Software Features

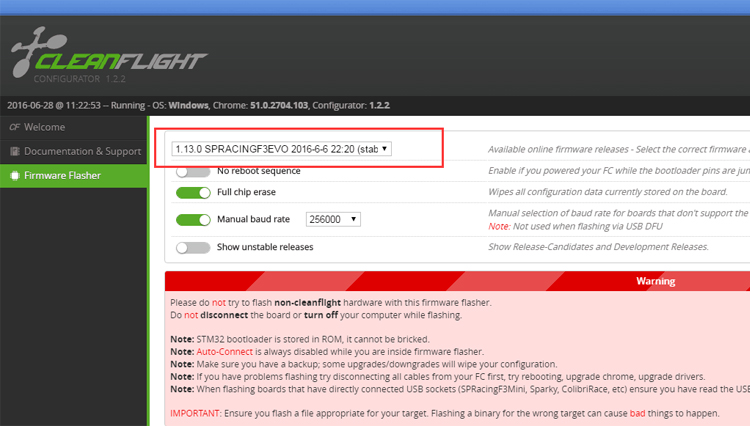

The SPRacingF3 runs Cleanflight and is configured using the Cleanflight Configurator. It has a stack of great features， such as these:
3 primary flight modes: Acrobatic， Angle and Horizon
Extensive control and switch configuration
Telemetry Support (HoTT， FrSky， SmartPort， etc)
Battery Monitoring and Warnings
Signal Strength Monitoring (RSSI)
Failsafe system
Altitude Hold Mode
Heading Hold Mode
In-flight tuning
Customizable LED colors
Android phone support (via EZ-GUI GCS)
